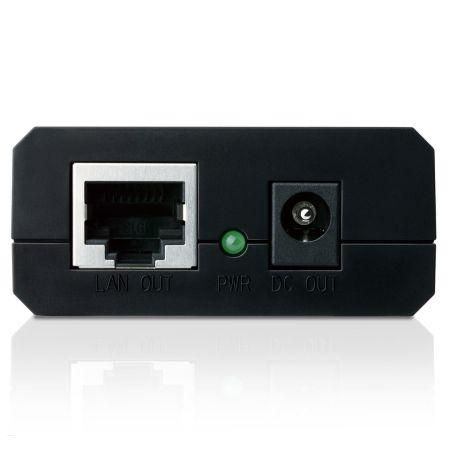

TP-LINK (POE10R) Omada PoE Splitter, IEEE 802.3af Compliant, Selectable Power Output, Gigabit Support, Plug-and-Play

  Omada PoE Splitter

  IEEE 802.3af compliant
  Selectable power output
  Gigabit speed support
  Plug-and-Play, no configuration required






  What This Product Does
  The PoE Splitter POE10R (TL-POE10R) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's  TL-SF1008P or POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.



Specifications:
- Output Power For PoE Splitter : Selectable Power Output
- Warranty : 2 Years
- Basic Function : Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Output
- Network Media : 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ohms STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ohms STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Dimensions : 80.8 x 54 x 24 mm
- LED Indicator : PWR
- Power Supply : 12VDC 1A, 9VDC 1A, 5VDC 2A
- Package Type : Retail
- Package Contents : POE10R
Power Cord
Installation Guide
- Interface(s) : 2 x 10/100/1000Mbps RJ45 Port
Auto Negotiation/Auto MDI/MDIX
1 x Power Output Port
- Environment : Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
- #Hide#Type : PoE Splitter
- Package Weight : 0.2400 kg
