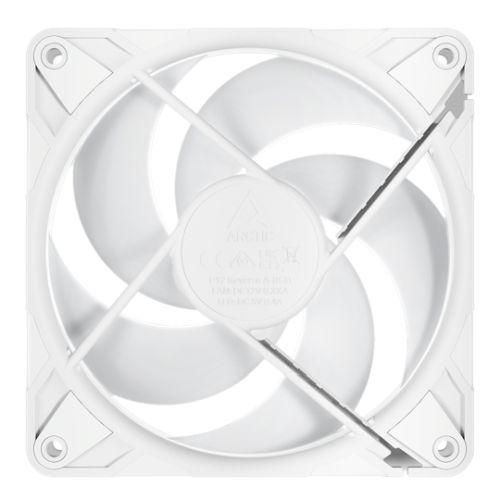

ARCTIC P12 Pro ARGB 120mm PWM Reverse Blade Case Fan w/ Cable Splitter, Fluid Dynamic Bearing, 500-3000 RPM, White

  P12 Pro Reverse 120 mm A-RGB PWM Fan with Cable Splitter

  Fan Speed: 500-3000 rpm (PWM controlled), 0 rpm below 5% PWM
  Airflow: 73 cfm
  Static Pressure: 4.5 mmH2O
  Fan Bearing: Fluid Dynamic Bearing
  Cable Length: 400 mm + 80 mm Daisy-Chain Cable
  Connector: 4-Pin Fan Plug + 4-Pin Socket
  LEDs: 12x A-RGB Gen2 LEDs





  Reversed Airflow
  The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.



  Optimized Airflow Design
  The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses.
  This reduces air resistance, minimising turbulence and aerodynamic noise.







  Optimized Bearing-Shaft Design (FDB)
  A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.





  SOTA Microcontroller
  Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.





  More Power - Less Noise
  An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.



  Minimum Gap Dimensions for Maximum Efficiency
  Enables higher static pressure and maximum airflow efficiency.



  PST – Easy Cable Management and Synchronized PWM Control
  Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.






  6-Year Warranty - Because Satisfaction Matters

  Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.




Specifications:
- #Hide#Colour : White
- #Hide#Max RPM : 3000 RPM
- Reverse Blade : Yes (Reverse Blade)
- Air Flow : 73 CFM
- Warranty : 6 Years
- #Hide#LED Lighting : Yes
- Dimensions : 120 x 120 x 27 mm
Cable Length: 400 mm + 80 mm Daisy-Chain Cable
- Fan Bearing : Fluid Dynamic Bearing
- LED Lighting : 12 x A-RGB Gen2 LEDs
Current, Voltage: 0.40 A, 5 V DC
Connector: 3-Pin A-RGB Plug + 3-Pin Socket
- Fan Connector(s) : 4-pin
- Weight : 172 g
- Fan Controller : PWM
- Rotation Speed : 500 - 3000 RPM
0 RPM below 5% PWM
- Colour : White
- Package Type : Retail
- Type : 120mm Case Fan
- Additional Features : Reversed Airflow
Optimized Bearing-Shaft Design
Automated Balancing
SOTA Microcontroller
Minimum Gap Dimensions for Maximum Efficiency
PST – PWM-Based Synchronized Fan Control
Static Pressure: 4.5 mmH2O
- Package Weight : 0.2100 kg
- Power : Typical Voltage: 12 V DC
Starting Voltage: 3.5 V DC
Current: 0.4 A
